How to run a report on idling events in Locate.
Idling is classified as ignition on but the vehicle not moving (speed of vehicle is zero). An Idling Report shows the location and duration of all idling.
Note: If you require more detailed information about how to run the report, see How do I create a report?.
- Select the Vehicle(s).
- Select ‘Idling’ from the Reports drop-down.
- Select the date.
- Click on the View Report.

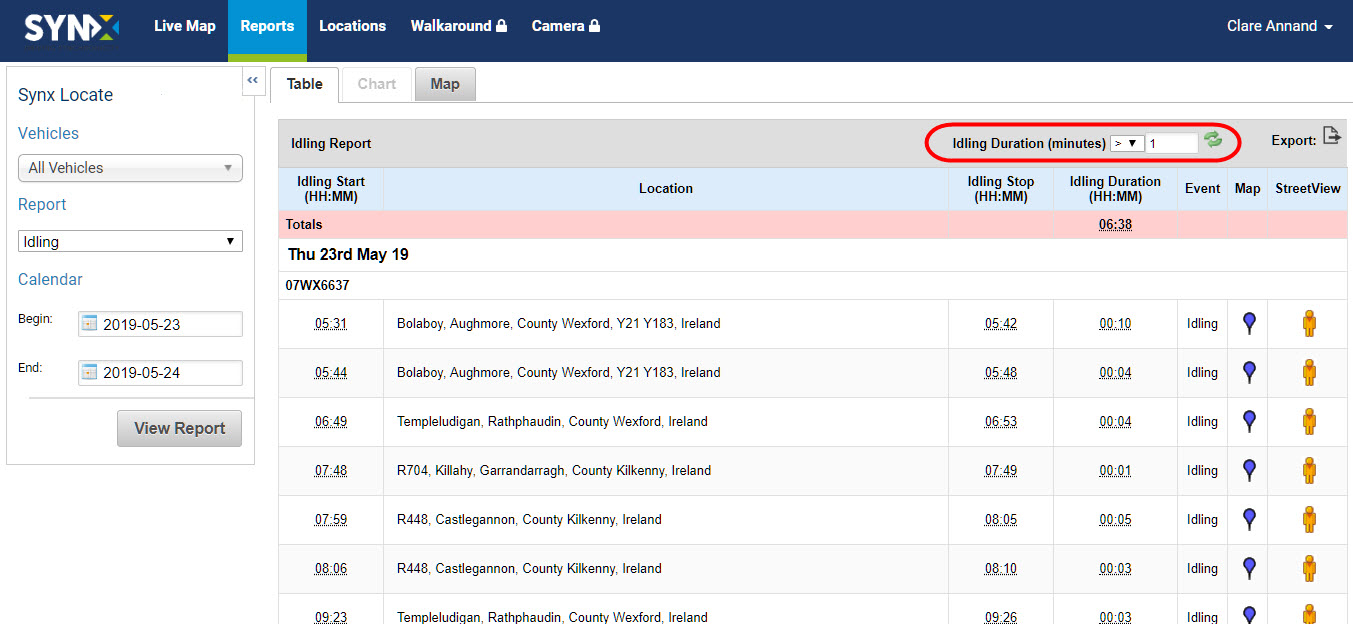

The idling duration for the fleet (or selected group of vehicles) is in the pink row.
The standard information contained in this report covers the following for each day during the selected period:
- Idling Start: The time (in hours & minutes) the vehicle stopped with engine on
- Location: Where the idling event occurred
- Idling Stop: The time (in hours & minutes) the vehicle starting moving
- Idling Duration: Length of time (in hours & minutes) the vehicle stopped with engine on
- Event: Engine on, speed zero
- Map: View the location of the idling on the map
- Street View: View the location of the idling in Street View
In addition, the Idling Report can be filtered to only display idling events greater or lesser than a certain length of time in minutes. The default is greater than 1 minute.
- Click on the down arrow and select either > (greater than) or < (less than).
- Type the number of minutes in the text box.
- Click on the green refresh icon.
The table will be refreshed with the filtered data.
To export the data as .csv or .xls format, click on the Export icon above the far right column. For more information, see How do I export a report?
View all idling events on the map

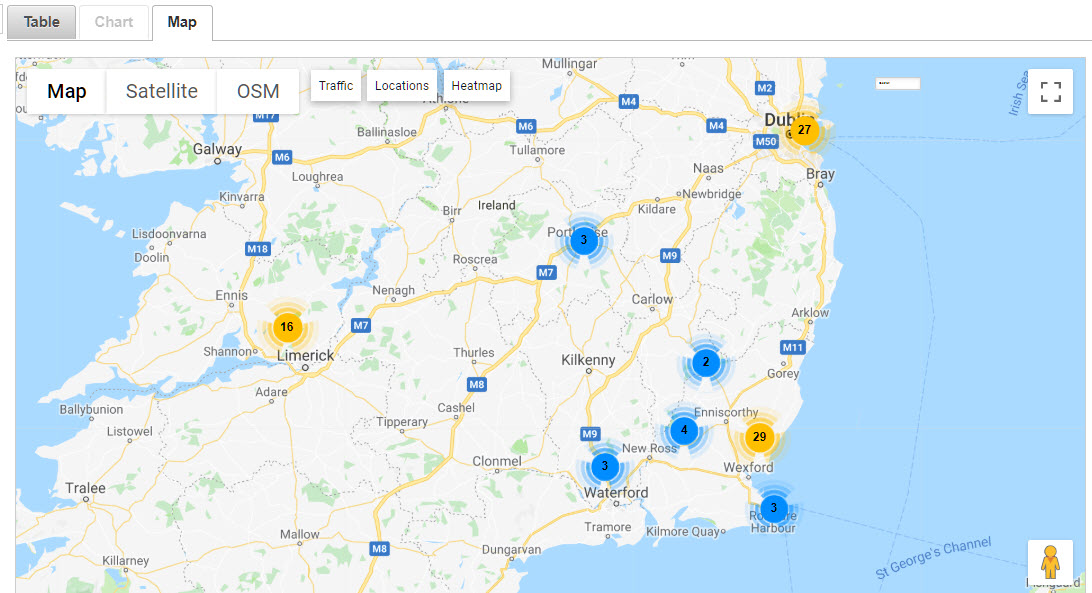

In Table view, click on the Map.
The map will include all the idling events specified in the Report Generator and Duration filter.

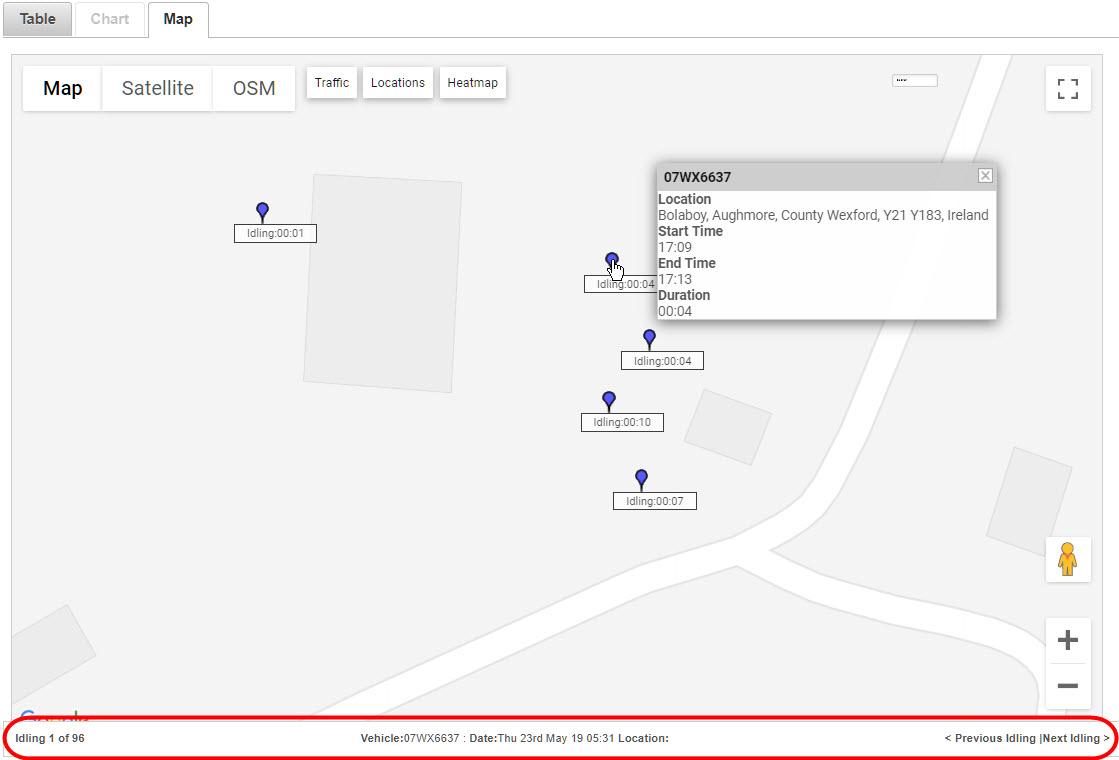

Idling events may be clustered on the map when viewing the area small scale.
Use the Google tools to zoom in to see the stop locations individually.
To see details of the idling (vehicle/driver, location, idling start and end times, and duration), hover the cursor over the blue pin and the details will pop up.
To scroll through the idling events, click on Previous Idling or Next Idling.
To view the map in full screen, click on the Full Screen icon in the top left-hand corner.
To exit the full screen mode, click on the icon again or press the ESC key on your keyboard.
View idling individually on the map
To view an individual idling location on the map, click the Map icon (blue pin) at the end of the row in the table. The blue pin bounces up and down over the duration time, and the vehicle and location details are in the status bar.

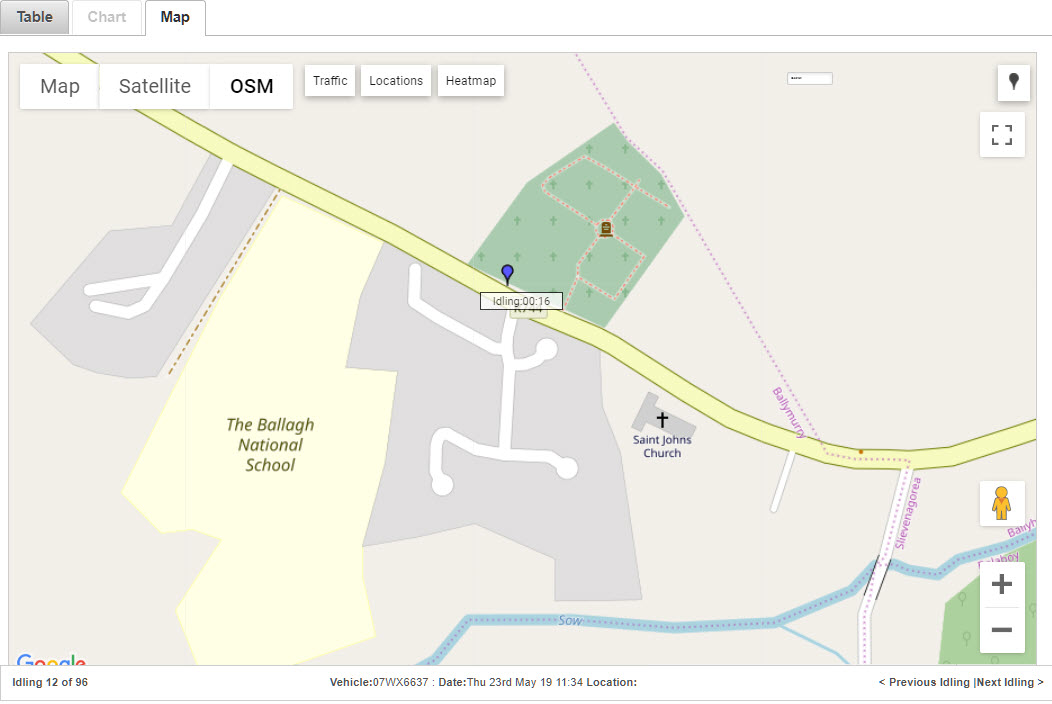

Tip: Turning on the OSM layer can give more information about the idling location (in this case, the vehicle has been idling by a cemetery for 16 minutes).
To scroll through the idling events on the map, click on Previous Idling or Next Idling.
To view the map in full screen, click on the Full Screen icon in the top left-hand corner.
To return to the table view, click on the Table.

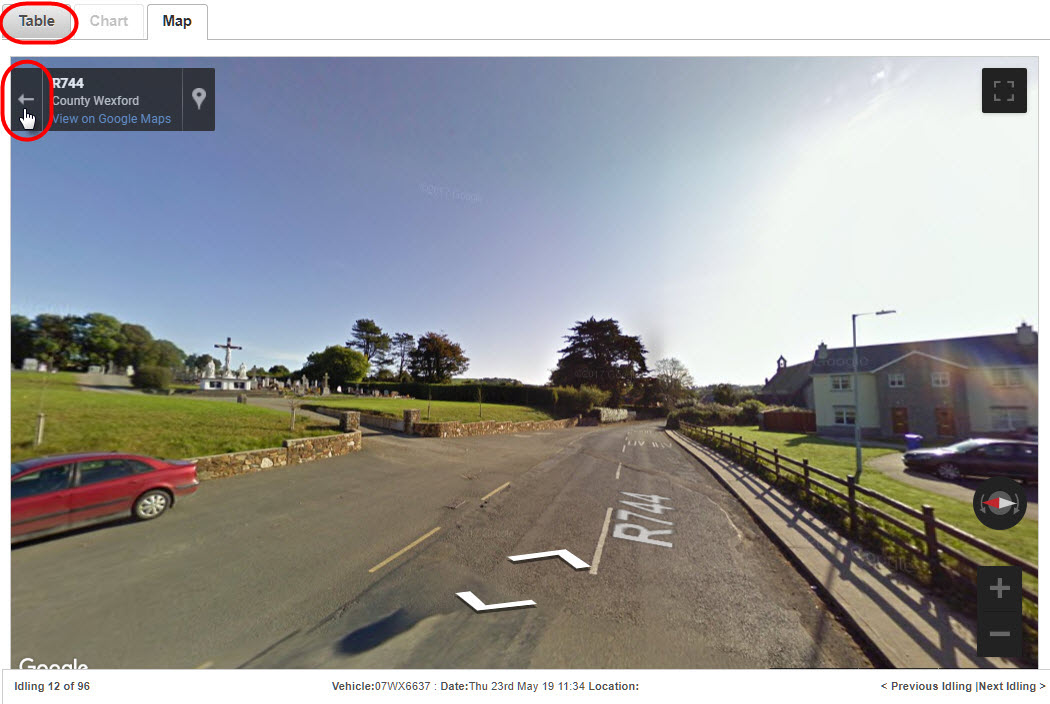

To view an individual idling location in Street View, click Pegman at the end of the row or drag and drop Pegman onto the map.
To scroll through the idling events in Street View, click on Previous Idling or Next Idling.
To view the map in full screen, click on the Full Screen icon in the top left-hand corner.
To return to the Map view, click the left arrow in the left-hand corner of the screen.
To return to the Table view, click on the Table tab.
